According to the composition, it can be divided into pure titanium plate and titanium alloy plate. The thickness range is usually 0.5-100mm, and special requirements can be customized to a width of 500mm. Its manufacturing follows national and American standards and other specifications.
Domestic grades: TA1, TA2, TA3, TA4, TA9, TA10, TC4, TC6, TC11.
International grades: Gr1, Gr2, Gr5, Gr7, Gr12, Gr23.

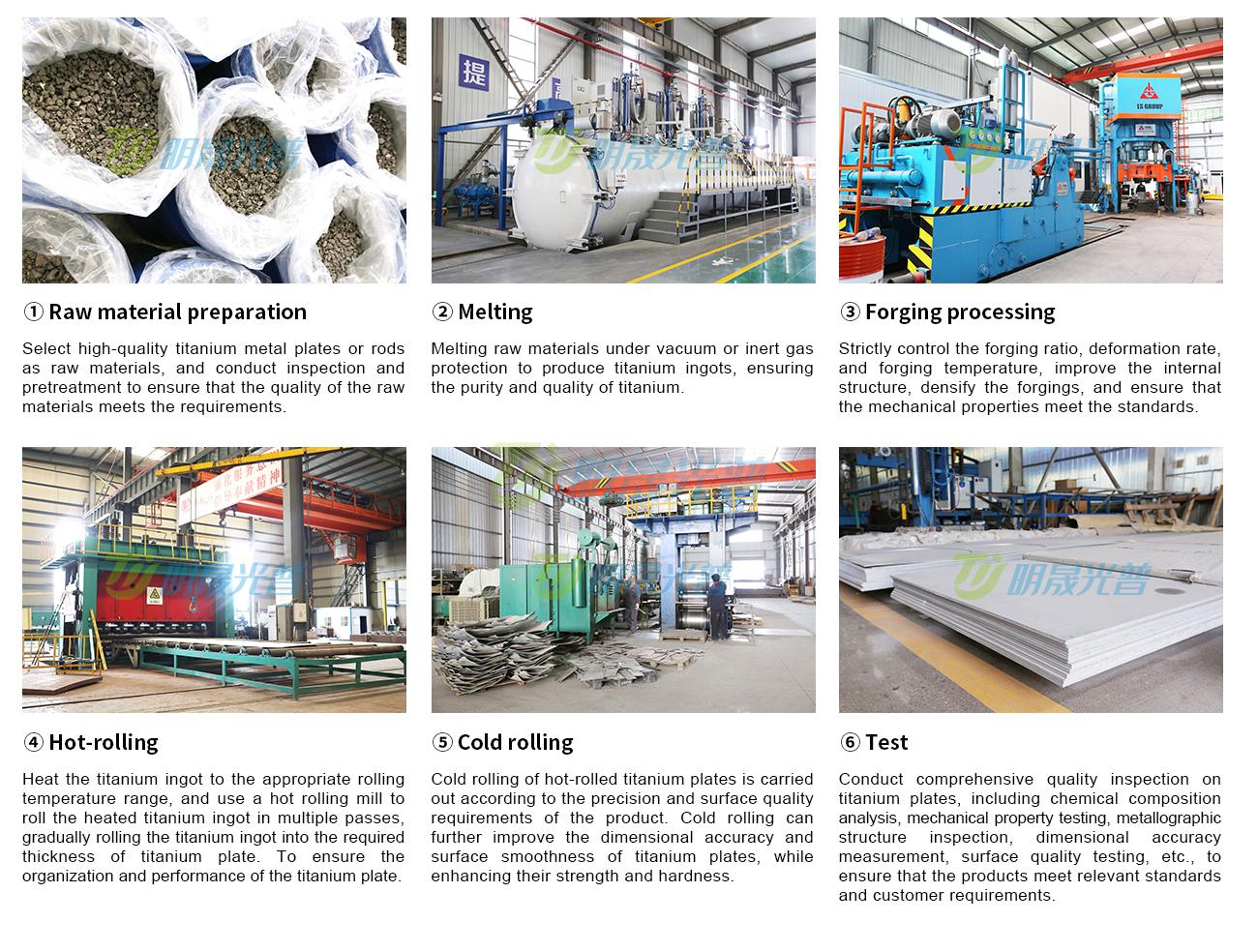

Melting: Vacuum consumable arc furnace or plasma arc melting technology is used to ensure uniform alloy composition and low impurity content.
Forging and Rolling:
Hot rolling: temperature control at 800-950 ℃ to improve material uniformity;
Cold rolling: Room temperature rolling improves surface accuracy.
Heat treatment:
Solution treatment: Heating at 950-980 ℃ followed by rapid cooling to eliminate residual stress;
Time treatment: tempering at 480-650 ℃ to optimize the balance between strength and toughness.
Surface treatment: anodizing, shot peening or coating processes to enhance corrosion resistance and wear resistance.
1. Physical and mechanical properties
High strength and lightweight: density of 4.5g/cm ³, TC4 titanium plate tensile strength of 895-1100MPa;
Thermal stability: The melting point is 1604 ℃, and the strength remains ≥ 450MPa at high temperatures of 600 ℃;
Low coefficient of expansion: 8.6 × 10 ⁻⁶/K, suitable for temperature fluctuation environment.
2. Chemical and Biological Characteristics
Corrosion resistance: The surface of the dense TiO ₂ oxide film is resistant to seawater and acid-base media;
Biocompatibility: Compliant with ISO 10993-5 standard, used for orthopedic implants and dental implants.
3. Processing characteristics
Process difficulty: Cold rolling requires high-strength equipment, and the temperature window for hot rolling is narrow;
1. Aerospace
Body and engine: TC4 titanium plate is used to manufacture engine blades and rocket structural components, reducing weight by more than 40%;
Thermal protection layer: TA15 titanium alloy is suitable for high temperature environments above 600 ℃.
2. Chemical and Ocean Engineering
Corrosion resistant equipment: TA2 pure titanium plate is used for reaction vessels, seawater desalination devices, and nuclear industry seals;
Electrolytic equipment: Titanium plates improve the efficiency of copper electrolysis without the need for separating agents.
3. Construction field
Alien roof: titanium board has excellent fire resistance, and the exterior walls of the Guggenheim Museum in Spain are fully covered;
Corrosive environment building: resistant to chloride ion corrosion, suitable for coastal building exterior walls.
